Jmeter 5.4.1:- Assertions - Part-02



Before going through this please check out earlier blog on Jmeter

As we have already learnt In order to run Jmeter on an weblink.

First we need to have

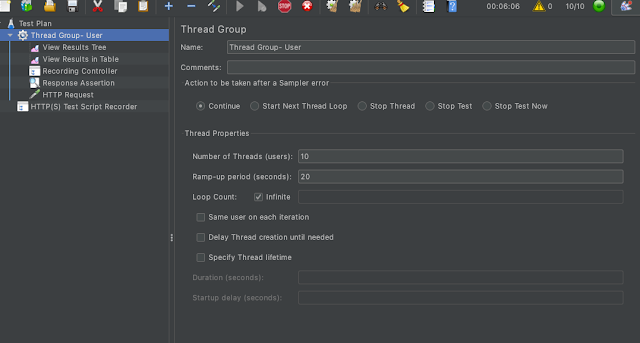

1. Thread group (Users)

  a. Number of thread (users)----users going to hit the link

  b. Ramp-up period-- Time taken by the user to hit the link

      as shown above  users are 10 time taken by them is 20 so each user will take 2 seconds to hit the link

   c. If infinite (loop will continue until manually stopped)

   d. uncheck the infinite and enter the  no of times you want to run the loop if you choose 2 as shown

       below then it means link will be hit by 10 users in 20 seconds then again it will be hit by 10 users in 20 seconds

 By right clicking on thread group you can also add  frequently used 2 listener as shown below

 a. view results tree

 b.view results in table

You should also add sampler to the thread group HTTP Request. as shown below

Once HTTP request is added   mention the server Name and Path

for example you have the weblink. https://reqres.in/api/users?page=2

server link is reqres.in (No need to provide https here)

Path /api/users?page=2

You can run it by any way by clicking on run button or clicking on green arrow

Once run you can check the result

The loop has run exactly 2 time with 10 user in 1 loop mean 20 hits by user

you can count that on Results

Tree view

Table view

You can also check No of samples (last line in screenshot) i.e. 20

No we can add the assertion,

Assertion

It is used to validate response in the request , its used to verify Expected result with the actual result

for the above result success code which is 200

If you have no idea what are response code below is the example

200 OK	Successful.
201 Created	Created.
202	Accepted
300 Multiple choices
301 Moved permanently
302 Found
400 Bad Request	Bad input parameter. Error message should indicate which one and why.
401 Unauthorized	The client passed in the invalid Auth token. Client should refresh the token and then try again.
403 Forbidden	* Customer doesn’t exist. * Application not registered. * Application try to access to properties not belong to an App. * Application try to trash/purge root node. * Application try to update contentProperties. * Operation is blocked (for third-party apps). * Customer account over quota.
404 Not Found	Resource not found.
405 Method Not Allowed	The resource doesn't support the specified HTTP verb.
409 Conflict	Conflict.
411 Length Required	The Content-Length header was not specified.
412 Precondition Failed	Precondition failed.
429 Too Many Requests	Too many request for rate limiting.
500 Internal Server Error	Servers are not working as expected. The request is probably valid but needs to be requested again later.
502 Bad Gateway
503 Service Unavailable	Service Unavailable.
504 Gateway Timeout

Go to the thread group add frequently used assertion- Response assertion

Once added you can  can change field to test as. "Response Code"

and Pattern matching rule as "Equals"

as we are checking expected result should be equal to actual result that is success

In order to achieve this  click on "add"  button and under "pattern to test"  enter "200" response code

and click on "Run"

This time i made the loop count 1 so it will run for 10 users in 20 seconds

Check the result Tree view (verify that it has run for 10 users) -> sampler result you can verify the response code

Table view

    Once we have verified actual and expected result lets take an example where expected is not equal to actual result

Let's fail the assertion by making the reponse code 500

Go to thread group check the settings  and Now run it

Check the result in tree view you can see Assertion result-received- 200

comparison-500  It's failed

Check in Table view

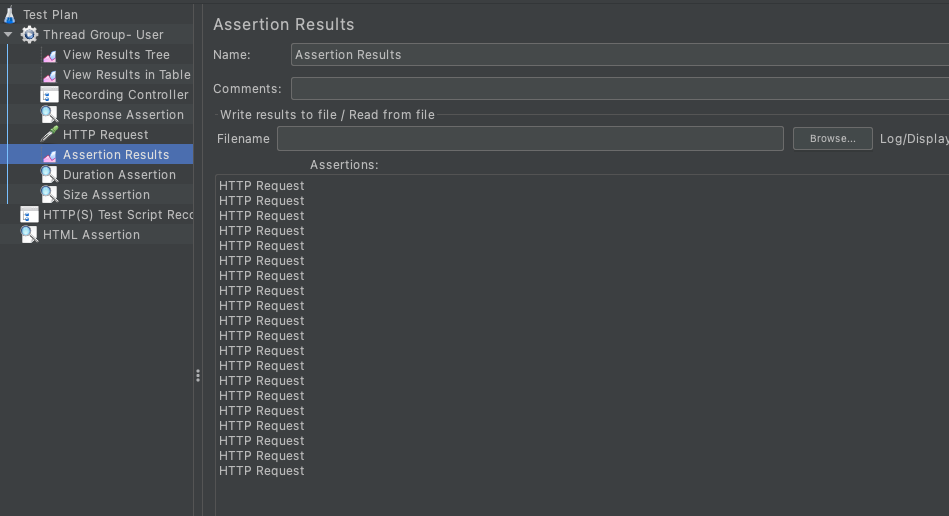

To give a more user friendly view of assertion lets add "assertion result" as shown below

For deviation in actual to expected result(500 -200) result failed   Assertion result will be Assertion result will be locked

When actual and expected are same (200-200) result passed

 assertion result will be

add Duration Assertion

which use to verify if any of the response took more time then the specified time

Now my current thread group is 10 user in 10 second and only 1 loop count

sample time taken by every hit can be fetched from Table view

we want to check is it is taking more time then 700ms

Go to duration assertion enter 700 ms hits taking time less then 700ms will be passed

Run  and check in result hist taking more then 700ms should be failed

Tree view

Table view

Assertion result

Failed one detailing will be present

Lets move on to another  assertion. which is a Size assertion .

Size in bytes can be checked

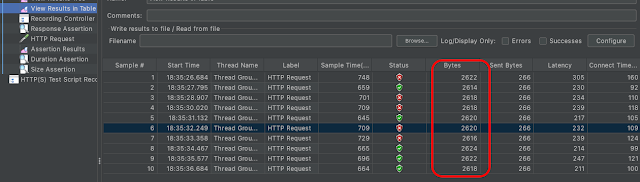

Lets enter  the size in byte 2620 if its <= 2620 then it should pass else it will fail

Before running do not forget to remove duration assertion milliseconds column or it will give result for duration as well as size assertion

check the result  in table format

failed ones are those whose size is greater than 2620

Assertion result

 Moving on to HTML Assertion it is going to check if the format of our response is valid HTML or not

Once run it will throw an error message(before moving on please remove condition in previous assertion added)

in HTML assertion we can provide threshold for the error and warning

It should not throw an error or fail as we have errors and warning within the threshold

assertion result you can check its passed successfully

If you wanted to save all error result in a file

In HTML assertion -click on Errors only and browse select and save file name

check the file it will have all errors and warnings
